Sitaram group prides itself on its focus and maintenance of the high quality of all its products. The biggest reason behind our success and our strong customer loyalty is our uncompromising attitude towards quality. We have well defined and stringent quality checks throughout our manufacturing process where all employees from top to bottom are responsible for the quality of material that passes through them in the production process.

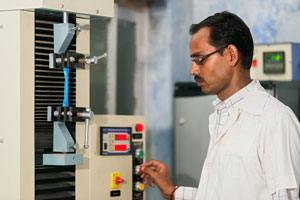

We have a state of the art testing laboratory where we regularly check pipes and fittings in production to ensure that they meet all the international standards and are of good quality We continuously invest in R&D and our infrastructure to ensure that both our production systems and testing technology are absolutely latest to serve our customers with best products possible.

column pipe

Column pipe

General Specification

Nirmaan Pipes is one of the leading manaufacturers of uPVC Riser / Drop / Column Pipes that are being successfully used in the erection of deep bore submersible pumps.

Features

Power Lock™

Power Lock™ : Nirmaan Column pipes are fitted with non metallic Power Lock™ system. This provides extra safety to the system during pump operations.

Square Threads™

Square Threads : Square Threads are made using high quality CNC machines ensuring accurate threads. This provides high load bearing capacity.

U MEP™ Technology

U MEP™ Technology : Developed using Ultra Molecularly Enhanced Polymer(U MEP™) Technology, an Ultra hi-tech process that orients the PVC molecules both in the axial & circumferential directions resulting in a pipe with enhanced impact strength & flexibility.

"T" Ring

"T" Ring : Specially designed "O" ring that provides cushioning effect to the coupler making installation easier & damage free. The ring also serves to provide a leak free joint and absorbs the vibration of the pump.

Technical Chart of Safe Pulling Load with Chain Pulley

Type & Size Ultimate Breaking Load (Kgs) Safe Pulling Load with chain pulley (Kgs) Safe Allowable Hydrostatic Pressure (Kg/cm^2) Safe Total  Pump Delivery Head (m)
OD - Outside Diameter
ND - Nominal Diameter
OD:  1"   ND: 25mm V4 1000 Kgs 700 Kgs 15 150
Medium 1400 Kgs 770 Kgs 16 160
Standard 1800 Kgs 1300 Kgs 30 300
     OD: 1 1/4"   ND: 32mm V4 1500 Kgs 1000 Kgs 15 150
Medium 2100 Kgs 1200 Kgs 15 150
Standard 2600 Kgs 1500 Kgs 25 250
Super 3100 Kgs 1550 Kgs 35 350
     OD: 1 1/2"  ND: 40mm V4 2000 Kgs 1200 Kgs 15 150
Medium 2500 Kgs 1300 Kgs 15 150
Standard 3000 Kgs 1700 Kgs 26 260
Super 4000 Kgs 2000 Kgs 35 350
     OD : 2"      ND: 50mm Medium 2800 Kgs 1500 Kgs 13 130
Standard 3800 Kgs 2100 Kgs 20 200
Super 4700 Kgs 2850 Kgs 27 270
Deluxe 5600 Kgs 3500 Kgs 35 350
   OD : 2 1/2"     ND: 65mm Medium 3500 Kgs 1900 Kgs 10 100
Standard 5000 Kgs 2700 Kgs 16 160
Super 7000 Kgs 4200 Kgs 26 260
Deluxe 8600 Kgs 4800 Kgs 35 350
   OD : 3"     ND: 80mm Medium 5000 Kgs 2750 Kgs 11 110
Standard 7000 Kgs 4000 Kgs 17 170
Super 9500 Kgs 5700 Kgs 26 260
Deluxe 11900 Kgs 6600 Kgs 35 350
      OD : 4"     ND: 100mm Medium 7500 Kgs 4100 Kgs 10 100
Standard 10300 Kgs 5700 Kgs 15 150
Super 16000 Kgs 9500 Kgs 26 260
Deluxe 19800 Kgs 11000 Kgs 35 350
      OD : 5"     ND: 125mm Medium 10600 Kgs 5900 Kgs 10 100
Standard 16000 Kgs 9000 Kgs 16 160

Advantages

  • Easy Installation
  • Long Life
  • Prevents Bacterial Growth
  • No Maintenance Required
  • Corrosion Resistant
  • High Strength
  • Light Weight

Accessories Available

  • Pump Guard and Adaptor

plumbing pipe

plumbing pipe

General Specification

Nirmaan Plumbing Pipes are manufactured in strict accordance to the standards ofASTM D 1785 and threaded to match G.l. Pipes as per IS : 1239 (Part-i) or 15:554. Nirmaan plumbing pipes provides a significantly cheaper. maintenance free and easier to install alternative compared to GI Pipes.

These pipes are extensively used for water connections and other fluid transport for both domestic and industrial purposes.

Size Specification

Dimensions of
Plumbing Pipes according
to ASTM D 1785
Schedule - 40
(Light Dutly)
Schedule - 80
(Medium Duty)
Schedule - 120
(Heavy Duty)
Inside Dia
in inch
Outside Dia
in mm
Wall thick
in mm
Pressure Rating
in Bar
Wall thick
in mm
Pressure Rating
in Bar
Wall thick
in mm
Pressure Rating
in Bar
1/2" 21.2 2.8 20.5 3.7 29 4.3 35
3/4" 26.6 2.9 16.5 3.9 23 4.3 27
1" 33.3 3.4 15.5 4.5 22 5.1 22
1.1/4" 42.0 3.6 12.5 4.9 28 5.5 21
1.1/2" 48.1 3.7 11.5 5.1 16 5.7 19
2" 60.2 3.9 9.5 5.5 14 6.4 17
2.1/2" 72.8 5.2 10.5 7.0 15 7.6 16
3" 88.7 5.5 9.0 7.6 13 8.9 15
4" 114.1 6.0 7.5 8.6 11 11.1 15

Applications

Building Construction : Nirmaan Plumbing Pipes are widely used for water connections to bathrooms, washbasins, kitchen sinks etc.

Portable Water Supply : They are used in individual homes, multi-residential buildings, commercial complexes and offices, hotels, hospitals, governmental buildings, transport terminals etc.

Industrial Applications : They are also popular in agriculture, telecommunication, irrigation projects etc. They can be used for distribution of chemicals, gases and milk etc. in plants, industrial estates and dairies etc.

Installation & Benefits

  • These pipes come with both single and double sided threads. Fluro Plastic tapes are used on joints while connecting these pipes to avoid damage and subsequent leakage.
  • These pipes are light and flexible providing quick and easy jointing. They can be joined to both metal pipes fittings as well other UPVC pipes and fittings. No special equipment is required for installation and the method is significantly easier and less time consuming than that for metal pipes.
  • Nirmaan plumbing pipes are tough and durable and have strong resistance to corrosion, wear and abrasion, chemicals, weather effects, moisture etc.
  • These pipes have a smooth internal surface providing low frictional loss and efficient transport of fluids.

SWR pipe

SWR pipe

General Specification

SR Soil, Waste & Rain Water (S.W.R.) drainage systems provide an effective solution for drainage & sewerage applications, owing to its superior properties compared to conventional drainage systems.

Nirmaan SWR Pipes are manufactured in strict accordance to IS: 13592/1992 standards. These pipes are available in both single and double socketed ends in various lengths specified below. These sockets come in both plain solvent cement type as well as.

Size Specification

Used for Ventilation & Rain Water System Used for Soil & Waster Discharge System
Nominal Diameter Mean Outside Diameter Type A Wall Thickness Type B Wall Thickness
  Min. Max. Min. Max. Min. Max.
75 75 75.3 1.8 2.2 3.2 3.8
90 90 90.3 1.9 2.3 3.2 3.8
110 110 110.4 2.2 2.7 3.2 3.8
160 160 160.5 3.2 3.8 4.0 4.6
Description of Pipes Length of Pipes (ft) Length of Pipes (mtrs)
Single Socketed 10 ft 3.28
Double Socketed 10 ft 3.28
Single Socketed 6 ft 1.83
Double Socketed 6 ft 1.83
Double Socketed 3 ft 0.91
Double Socketed 2 ft 0.61

Applications

Nirmaan SWR UPVC system is used in excreta lines of Residential and Commercial complexes. They are primarily used for the following purposes:

  • Rain - These lines are generally connected to gutters on roof tops for drainage of excess rain water.
  • Soil / waste - These lines are connected to the different excreta generation points such as lavatories (Basins, commodes etc) and kitchens (sinks etc.) for smooth transportation of soluble and in soluble waste along with water to main drain lines.

Installations & benefits

  • Nirmaan provides both rubber ring joints as well as plain solvent cement type joints for its SWR pipes that provides easy jointing based on the choice of the customer.
  • These pipes are lightweight, flexible and come in various lengths that provides a convenient, time saving as well as cost effective solution.
  • The pipes have a smooth internal surface, are corrosion and weather resistant that provide excellent flow properties through the pipe.
  • These pipes also have high impact strength, are resistance to a wide range of chemicals, and are self extinguishing

casing pipe

Casing pipe

General Specification

Nirmaan Casing pipes are widely used for bore-wells, irrigation, chemical distribution etc and can be installed n vertical, horizontal or inclined positions.

Nirmaan Casing Pipes are manufactured according IS 12818-2010 standards and are available in the following 3 types :

(i) Plain Casing Pipes : These are generally used as extension pipes to screen pipe They are of two types C. S. Pipe For shallow-depth (up to 80 m) red colour code. C. M Pipe For medium -depth (up to 250 m) yellow colour code.

(ii) Screen Pipes : These pipes may be plain or ribbed. They have transverse slots and are mainly used in bore wells, from the water-table Level onwards.

(iii) Ribbed Screen Pipes : These pipes have longitudinal ribs and transverse slots. The ribs keep granulated Soil away from the slots and increase the permeability rating to more than double when compared to plain screen pipes.

Size Specification

Nominal Dia. Outside Dia. (mm) Wall Thickness (mm) Max. Outside Dia. over (mm)
Inch mm Min. Max. Min. Max.
1.5" 40 48.0 48.2 3.5 4.0 52.0
2" 50 60.0 60.2 4.0 4.6 65.0
3" 80 88.0 88.3 4.0 4.6 94
4" 100 113.0 113.3 5.0 5.7 120
5" 125 140.0 140.4 6.5 7.0 150
6" 150 165.0 165.4 7.5 8.5 178
7" 175 200.0 200.5 8.8 9.8 215
8" 200 225.0 225.5 10.0 11.2 243
10" 250 280.0 280.5 12.5 14.0 298
12" 300 330.0 330.6 14.5 16.2 352

Applications

  • Casing pipes are primarily used for Bore-well Casing, Irrigation. Domestic wells, Industrial mining. Chemical Distribution etc.
  • UPVC casing pipes provide a significantly cheaper, longer lasting and maintenance free alternative to MS. ERW, GI, Asbestos, and SS Pipes uses for similar applications.
  • UPVC casing pipes provide a significantly cheaper, longer lasting and maintenance free alternative to MS. ERW, GI, Asbestos, and SS Pipes uses for similar applications.

Installation & Benefits

  • These pipes are manufactured with very good quality internal and external trapezoidal threads and bell-spigot ends, which ensure easy and reliable joining.
  • Ribbed screen pipes are generally used to increase the outer surface area of a bore-well casing pipe. The ribs provide around 25% additional surface area by holding the gravel balls away from the pipe. at a distance of about 2mm. This arrangement cleans slits naturally due to vertical flow passage and allows more water to seep in that results in higher yield of water than other plain screen pipes with the same bore.
  • These pipes are made with extremely smooth internal surface that produces minimal hydraulic friction facilitates easy transport of water.
  • These pipes have strong resistance to harsh weather and environments of salt, acid, alkali, oil etc and can handle a wide range of pH values enabling their uses in wells, tube-wells, bore-wells in all kinds of soil and terrain.
  • Their biggest advantage to metal pipes is their immunity to galvanic or electrolytic erosion and their maintenance free long usage life making them ideal for transport of potable water.

Agriculture Pipe & Fittings

Agriculture Pipe & Fittings

General Specification

Pipes : Nirmaan Grey Pipes are manufactured according to IS 4985/2000 .These pipes are used in varied applications ranging from Agriculture to Sanitation. Their low cost and high strength features have made them popular with farmers, government departments and industries for transport of both potable and non-potable water.

Fittings : Nirmaan Grey Fittings are manufactured according to IS 10124/1988. We manufacture all types of fabricated fittings like Socket, Tee, Bend, End Cap & Flanged Tail Piece.

Size Specification

Pipes : Nirmaan Grey UPVC Pipes are manufactured from 20mm to 200mm diameter in all IS standard 4985/2000 pressure rating classes 2.5, 4.0, 6.0, 8.0, 10.0 & 12.5 kgf/cm2

Fittings : Nirmaan Fittings are manufactured from 63 mm to 200 mm as per IS 10124/1988

Nom.
Outside
Dia.mm
Minimum Wall Thickness in mm
Pressure Rating in kgf/cm2
2.5 4.0 6.0 8.0 10.0 12.5
020 - - - - 1.1 1.4
025 - - - 1.2 1.4 1.7
032 - - - 1.5 1.8 2.2
040 - - 1.4 1.8 2.2 2.8
050 - - 1.7 2.3 2.8 3.4
065 - 1.5 2.2 2.8 3.5 4.3
075 - 1.8 2.6 3.4 4.2 5.1
090 1.3 2.1 3.1 4.0 5.0 6.1
110 1.6 2.5 3.7 4.9 6.1 7.5
125 1.8 2.9 4.3 5.6 6.9 8.5
140 2.0 3.2 4.8 6.3 7.7 9.5
160 2.3 3.7 5.4 7.2 8.8 10.9
180 2.6 4.2 6.1 8.0 9.9 12.2
200 2.9 4.6 6.8 8.9 11.0 13.6

Applications

  • Water mains for potable water supply and sewerage mains for drain lines
  • Drainage installations for both domestic and industrial purposes
  • Irrigation and sprinkler systems
  • Ducting for power and communication systems
  • Surface water drainage and greenhouse irrigation systems
  • Slurry and Effluent Lines
  • Corrosive fluid pipelines and chemical plant installations
  • Fume extraction ducts

Installation & Benefits

  • The Selfit (Solvent Cement joint) pipes have one end self-socketed and the other end plain.
  • Selfit sockets are formed with high precision on specially developed sophisticated machines
  • 50% saving in installation time, as compared with plain ended pipes and loose couplers
  • The number of joints is reduced by 50%, resulting in substantial saving in labour costs
  • The requirement of Solvent Cement for a pipeline is reduced by almost 50%
